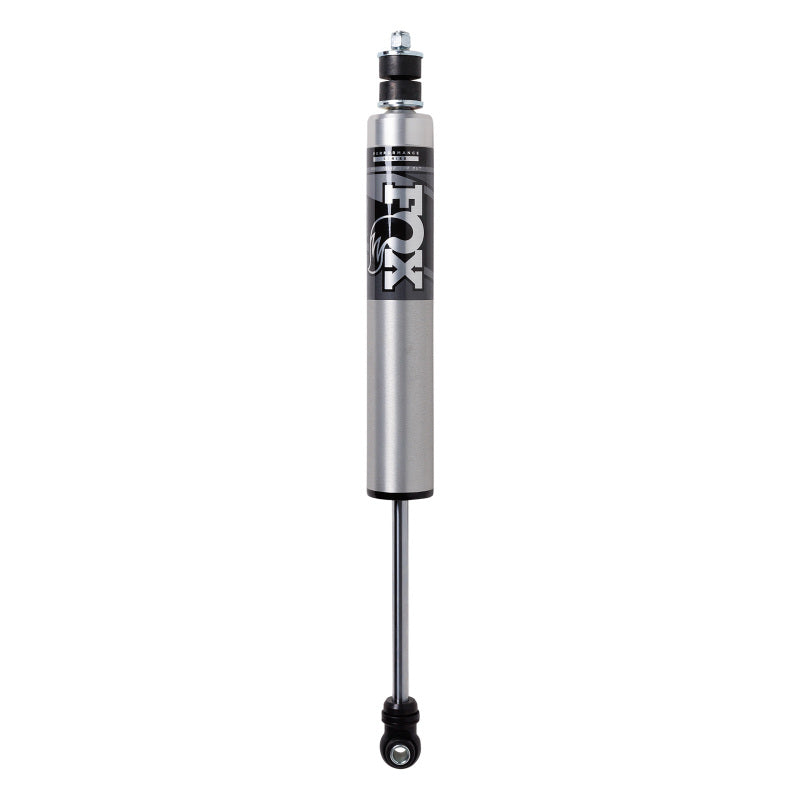

FOX 2.5 Performance Series IFP Hydraulic Top Out Shock for Ram 3500 with 0-3 Inch Lift - Part Number 987-24-050

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control. Application specific valving to maximize performance. Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle’s application._x000D__x000D_ _x000D__x000D_ Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil._x000D__x000D_ _x000D__x000D_ Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

• 2.5 in. Impact Extruded 6061-T6 Aluminum Shock Body
• 2.5” Impact extruded 6061-T6 aluminum shock body
• High-flow velocity-sensitive damping
• Type II clear-anodized body plating
• Fully rebuildable and re-tunable
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston
• Hydraulic Top Out [HTO] Piston
• Application specific tune
• 5/8 in. Hard Chrome Shaft
• 5/8” hard chrome shaft
• Corrosion resistant

Enhance your Ram 3500's off-road and on-road performance with the FOX 2.5 Performance Series IFP Hydraulic Top Out (HTO) shock absorber, designed specifically for vehicles with a 0-3 inch lift. This bolt-on shock features a durable 2.5-inch impact-extruded 6061-T6 aluminum body, which efficiently dissipates heat and resists corrosion, ensuring long-lasting performance in demanding environments. The shock's high-flow velocity-sensitive damping provides precise control, while the internal floating piston (IFP) separates shock oil from nitrogen gas, optimizing damping consistency and eliminating fade during extended use. Hydraulic Top Out (HTO) technology offers position-sensitive rebound damping control, reducing harsh top-outs and increasing ride comfort both on and off-road, especially after installing heavier tires or higher lifts. This feature ensures your vehicle maintains excellent stability and comfort by slowing shock shaft movement through a secondary shim stack, providing a smoother ride in varied terrains. The shock's fully rebuildable and re-tunable design allows for easy maintenance and tuning, ensuring it remains performance-ready over time. Built for durability, the FOX shock is tested and proven in racing conditions, with a hardened 5/8-inch chrome shaft to resist corrosion and wear. Whether you're tackling rugged trails or cruising highways, this shock absorber offers a perfect balance of off-road capability and on-road comfort, making it an ideal upgrade for lifted trucks seeking reliable, high-performance suspension components.

Features:

• 2.5-inch impact-extruded 6061-T6 aluminum shock body for durability and heat dissipation

• High-flow velocity-sensitive damping for precise control

• Type II clear-anodized body plating for corrosion resistance

• Fully rebuildable and re-tunable for easy maintenance

• Internal floating piston (IFP) separates gas and oil for consistent damping

• Hydraulic Top Out (HTO) piston reduces harsh top-outs and increases comfort

• Application-specific tuning enhances performance for lifted trucks

• 5/8-inch hard chrome shaft provides strength and corrosion resistance

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
