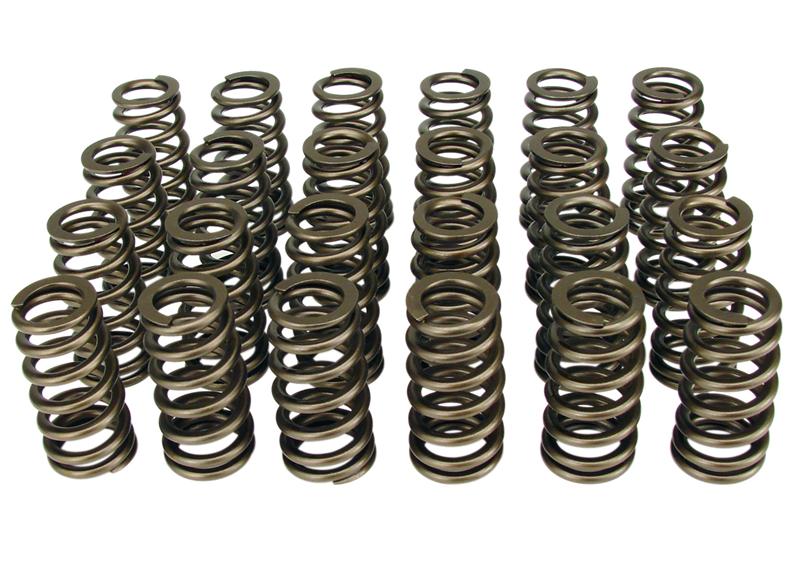

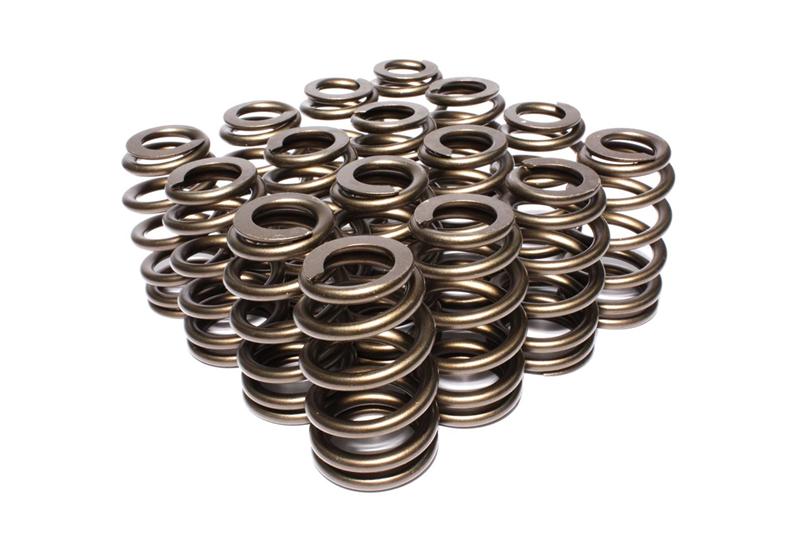

COMP Cams Beehive Valve Springs Part #26056-16 for High-Performance Engines

COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles. Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims 26056 Top Bottom 1.1851.454 .7311.000 160 @ 1.800 420 @ 1.150 1.100 400 785 703, 705 4696, 4697, 4704 4757 Beehive Valve Springs: Top 1.185" OD, .731" ID

Upgrade your engine's valve train with the COMP Cams Beehive Valve Springs Part #26056-16, designed to deliver improved stability and reduced weight for enhanced performance. These springs feature a unique beehive shape that efficiently handles valve train stress, reducing harmonic vibrations that can cause damage at high RPMs. The lightweight design reduces spring and retainer mass, allowing for more aggressive cam profiles and increased horsepower at higher engine speeds. This makes them ideal for performance enthusiasts seeking durability and power gains in their engine builds. The springs are constructed with a top outer diameter of 1.185 inches and an inner diameter of 0.731 inches, ensuring a precise fit for compatible valve assemblies. The seat load is 160 pounds, with an open load of 420 pounds, providing optimal tension for reliable valve operation. The coil binds at 1.100 inches of compression, offering a balanced spring rate of 420 lbs per inch, which ensures consistent valve control throughout the engine's RPM range. The use of titanium or steel retainers enhances durability and reduces overall spring weight, contributing to higher RPM capabilities and longer service life. The COMP Cams Beehive Valve Springs are suitable for a variety of high-performance applications, providing excellent heat dissipation and stress management thanks to their oval/multi-arc wire shape. These features work together to improve valve control, increase high RPM horsepower, and extend the lifespan of your valve train components, making them an essential upgrade for race and street performance engines alike.

Features:

• Unique beehive shape for efficient stress handling and harmonic elimination

• Lightweight construction reduces valve train mass for higher RPM limits

• Optimized coil bind point at 1.100 inches for reliable valve operation

• High spring rate of 420 lbs/inch for consistent valve control at high RPMs

• Available with titanium or steel retainers for durability and weight reduction

• Designed for performance applications to increase horsepower and longevity

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
